Hagglunds Bv206 Load Carrier with MaxiLift PH270 Crane

Hagglund

Ref: 40209

Price: POA

Quantity available: 10

Enquire now

You are enquiring for: Hagglunds Bv206 Load Carrier with MaxiLift PH270 Crane

Ensure you complete the below form in full. After submission our team will be in touch.
OR

Hagglunds has become a well known brand in the civilian market.

These extreme vehicles are capable of travelling on roads at speeds of up to 55km/h.
Also capable of negotiating up to 60% gradients, and they have less ground pressure than half a man’s footprint.
These are the ultimate ATV.

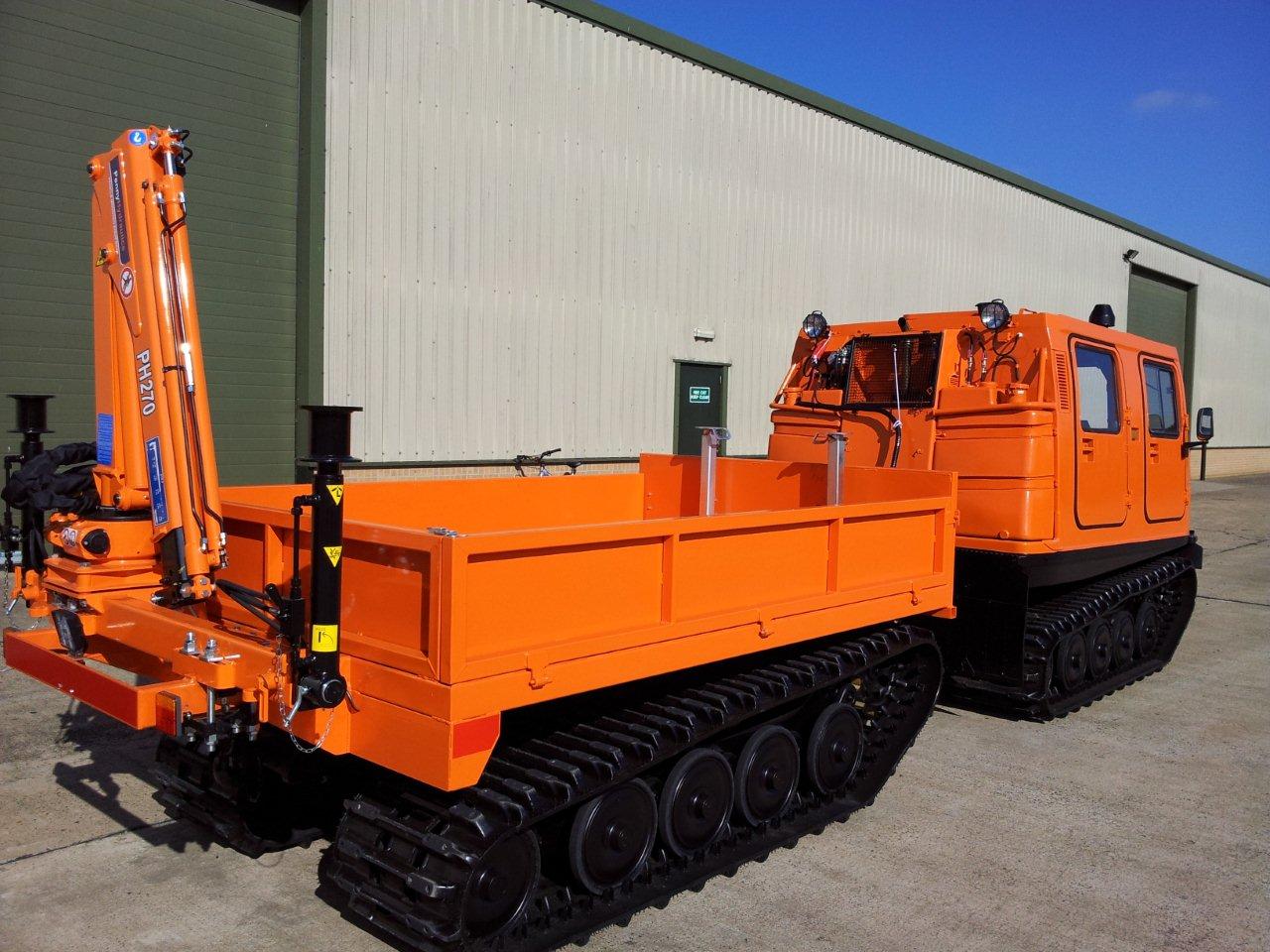

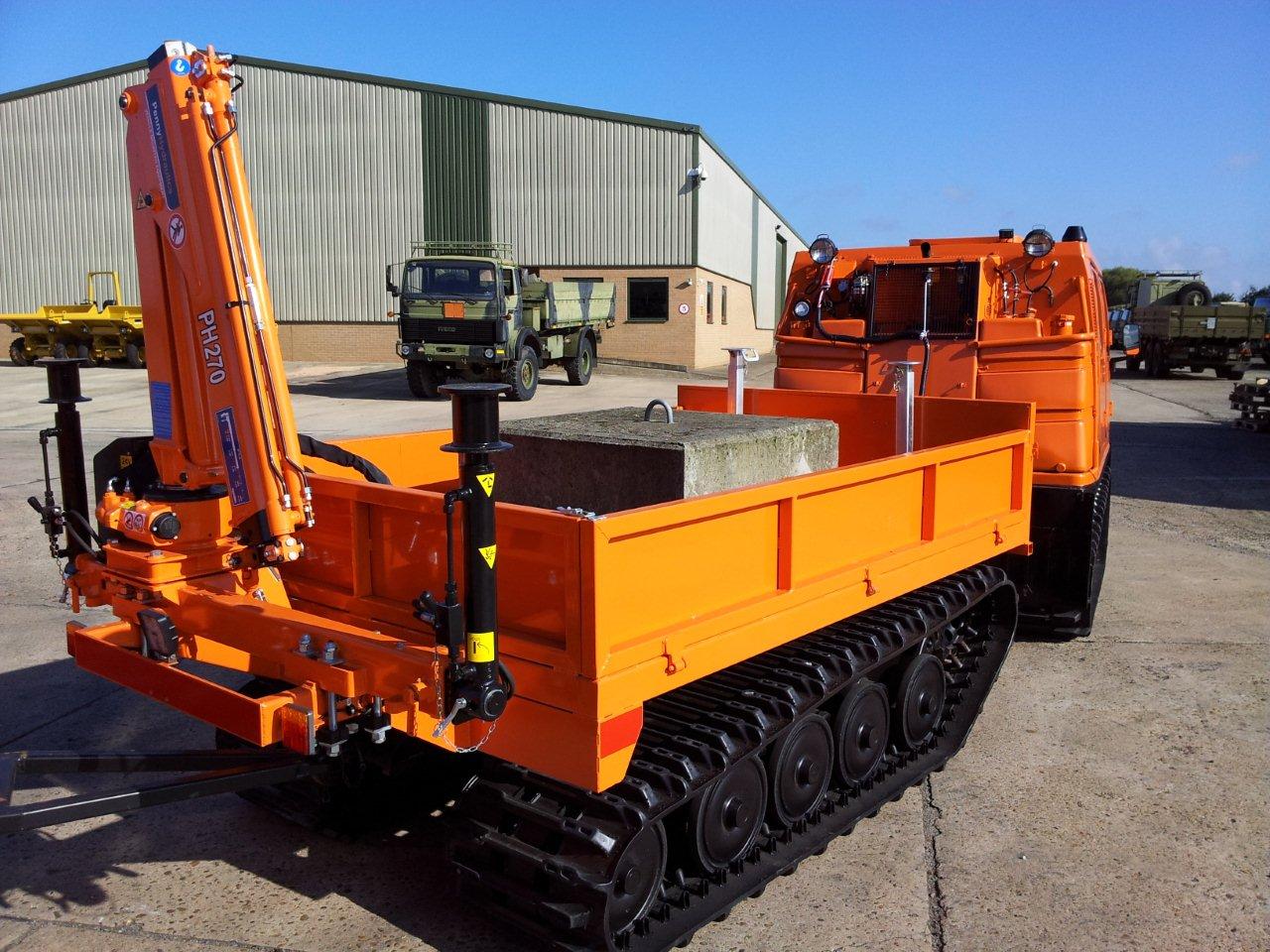

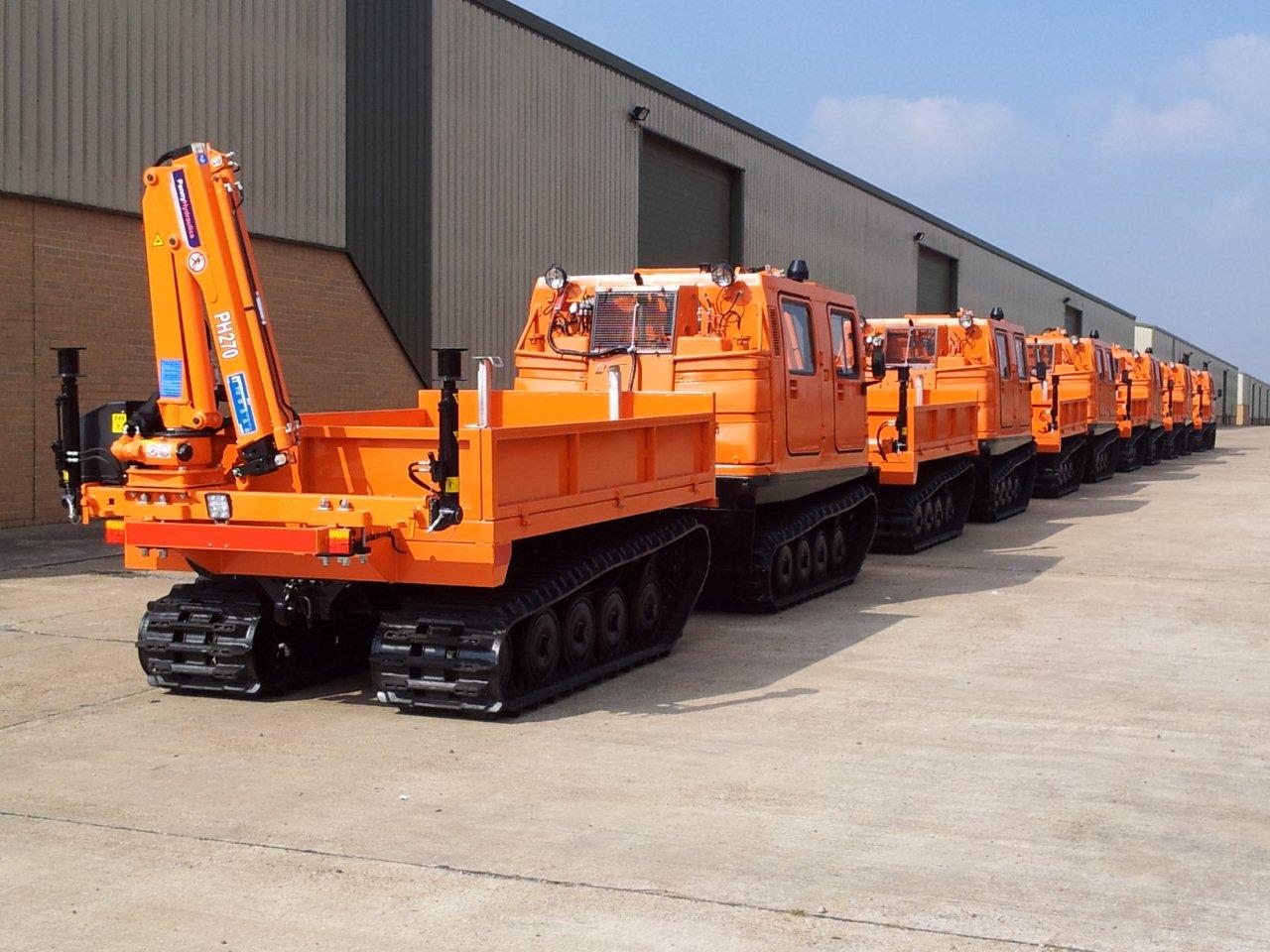

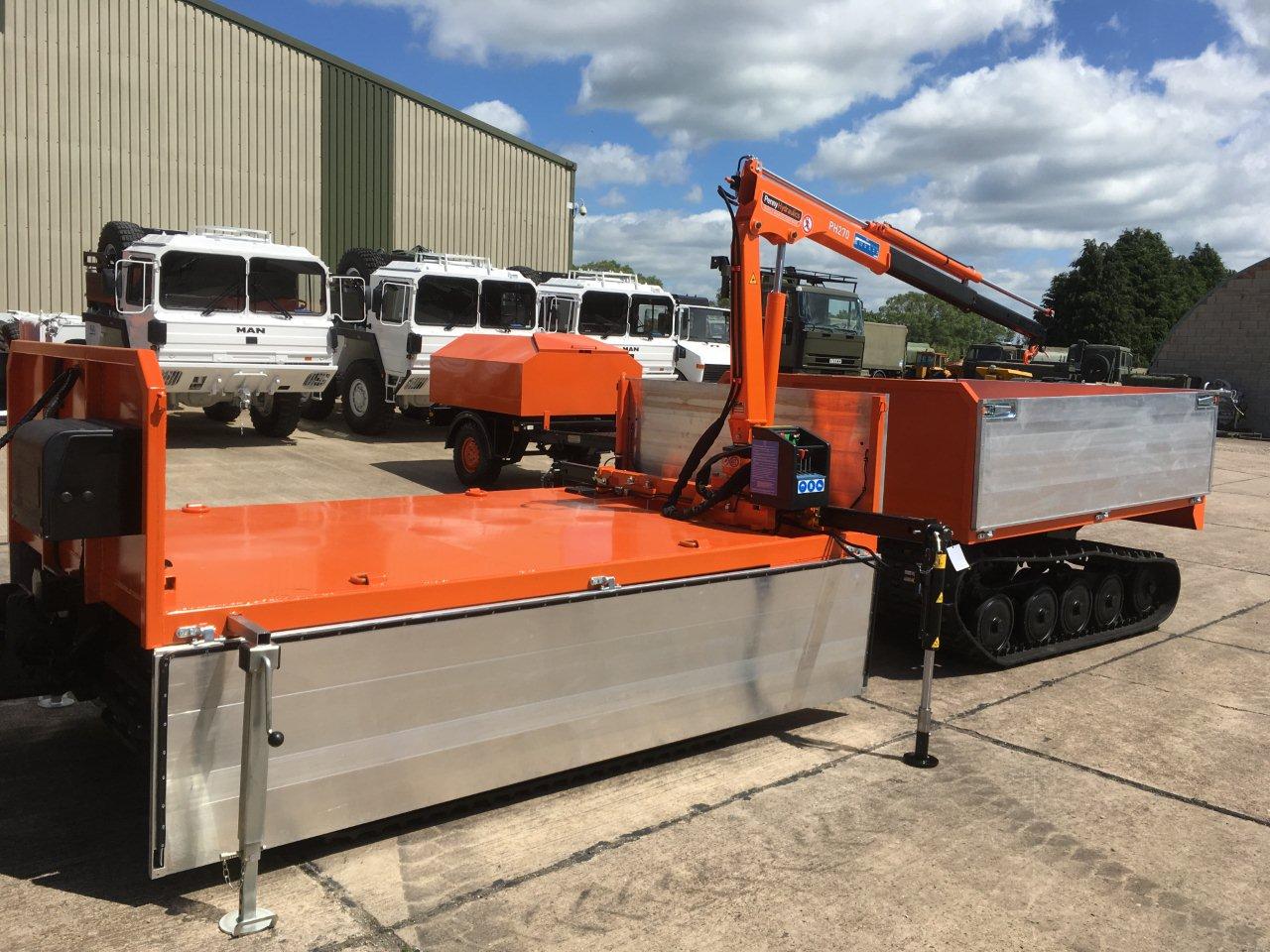

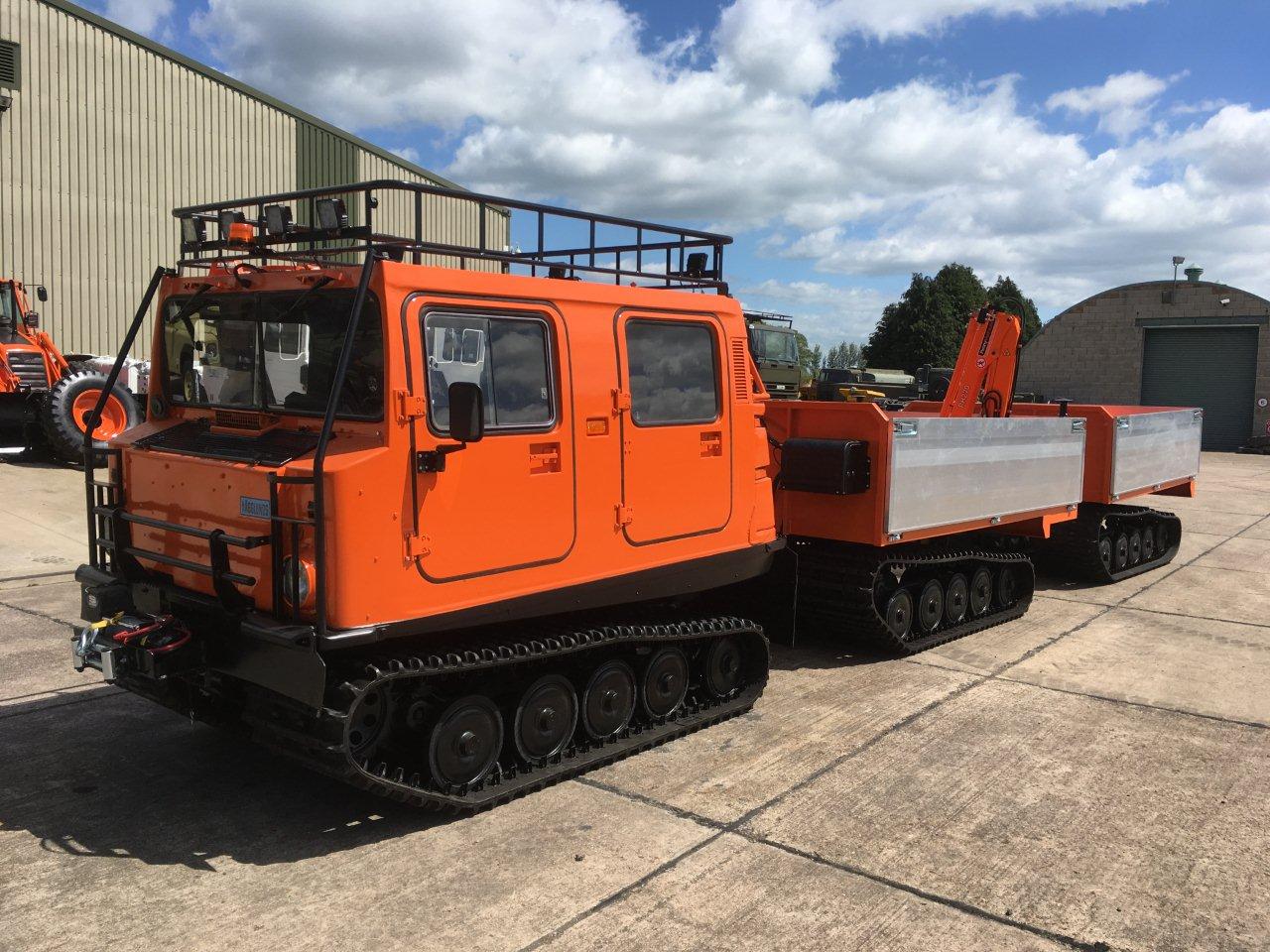

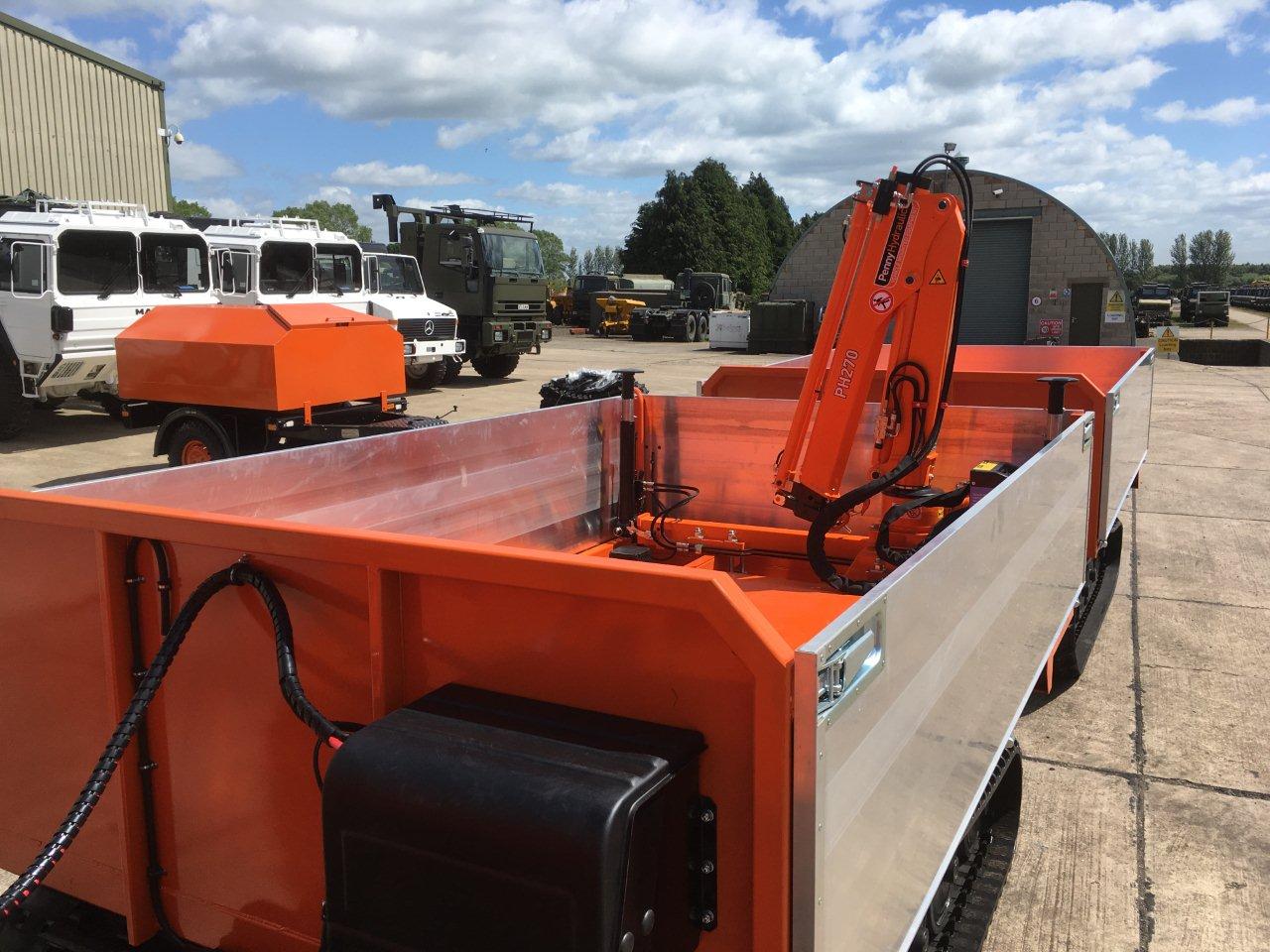

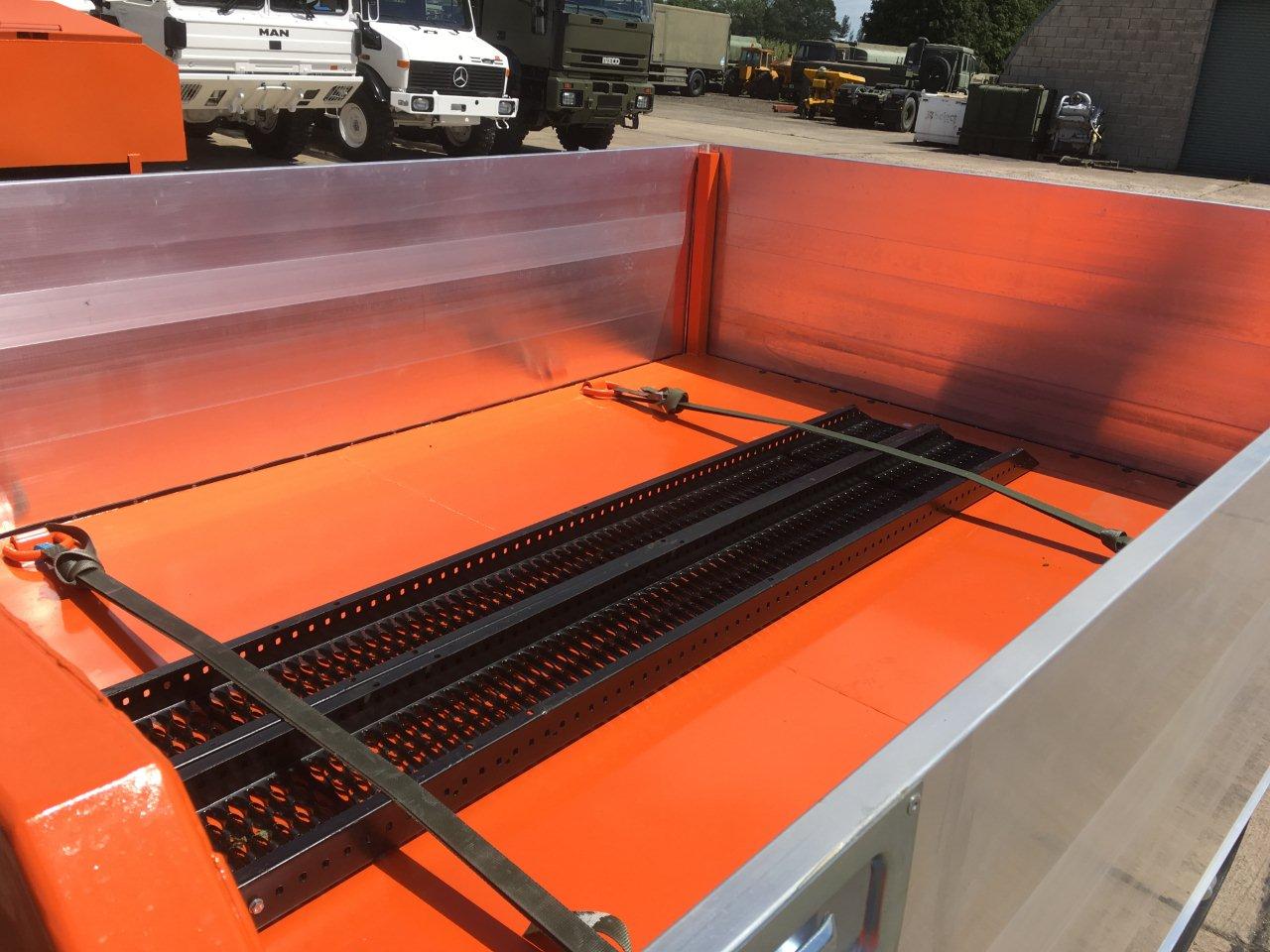

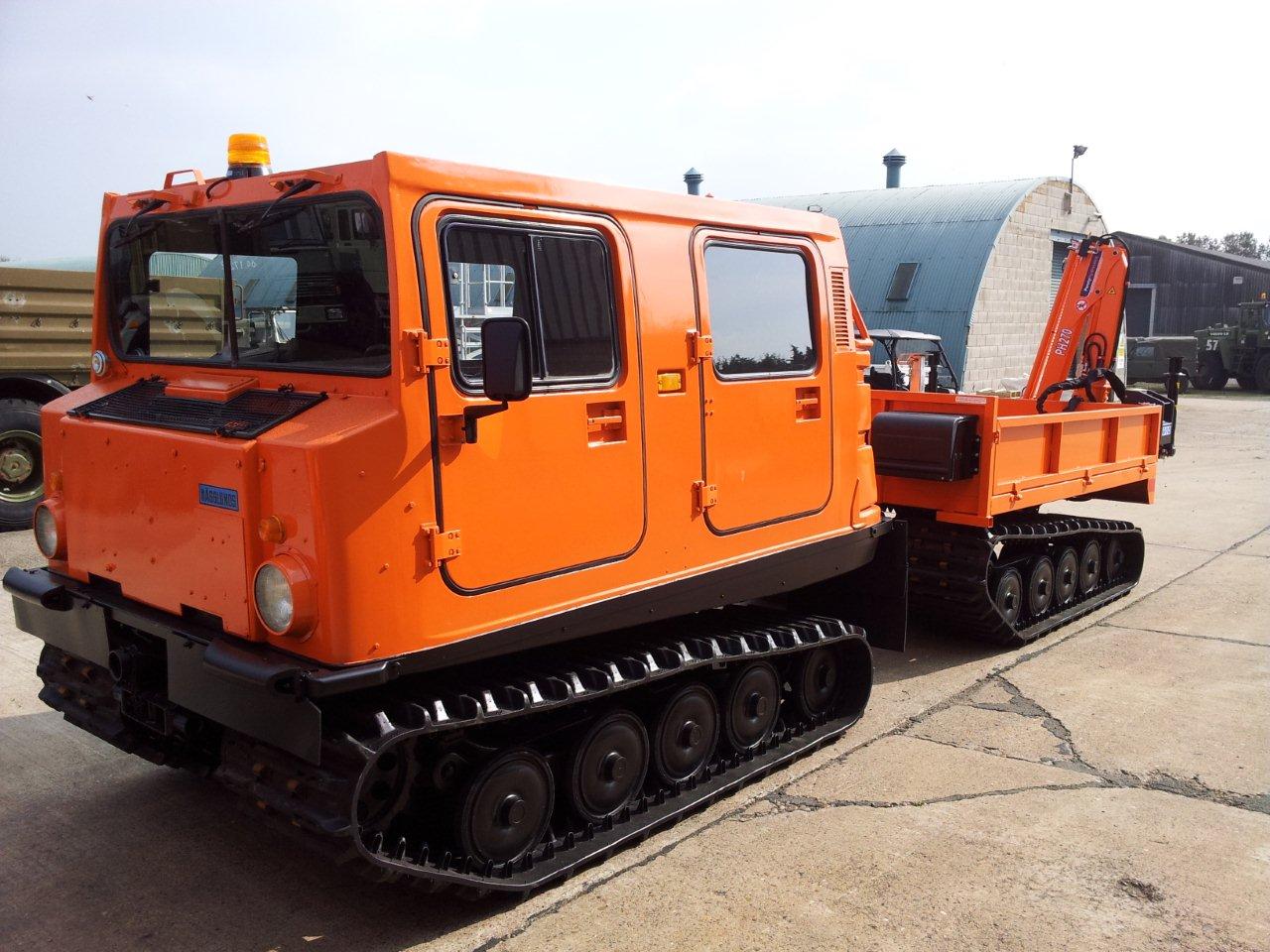

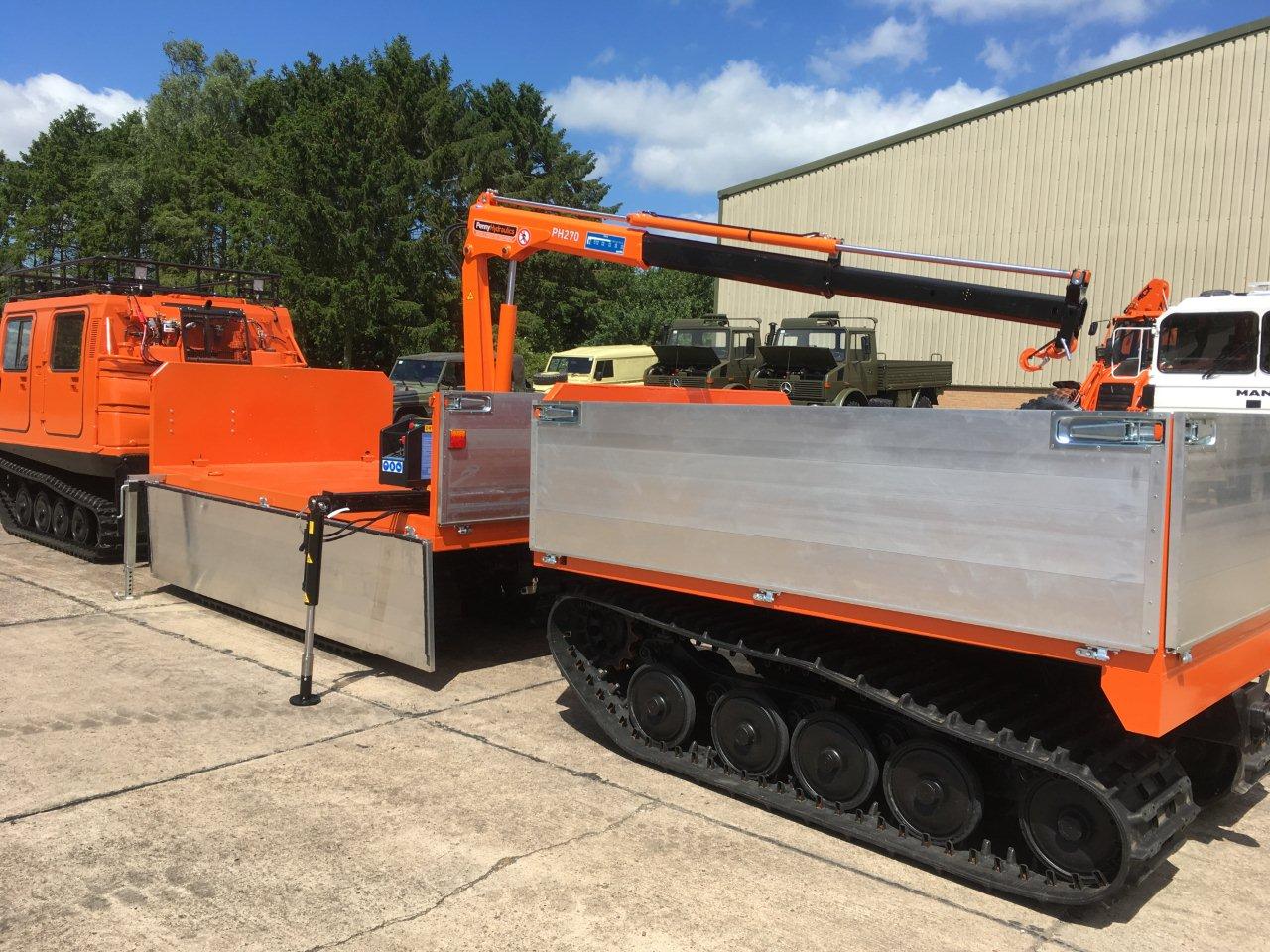

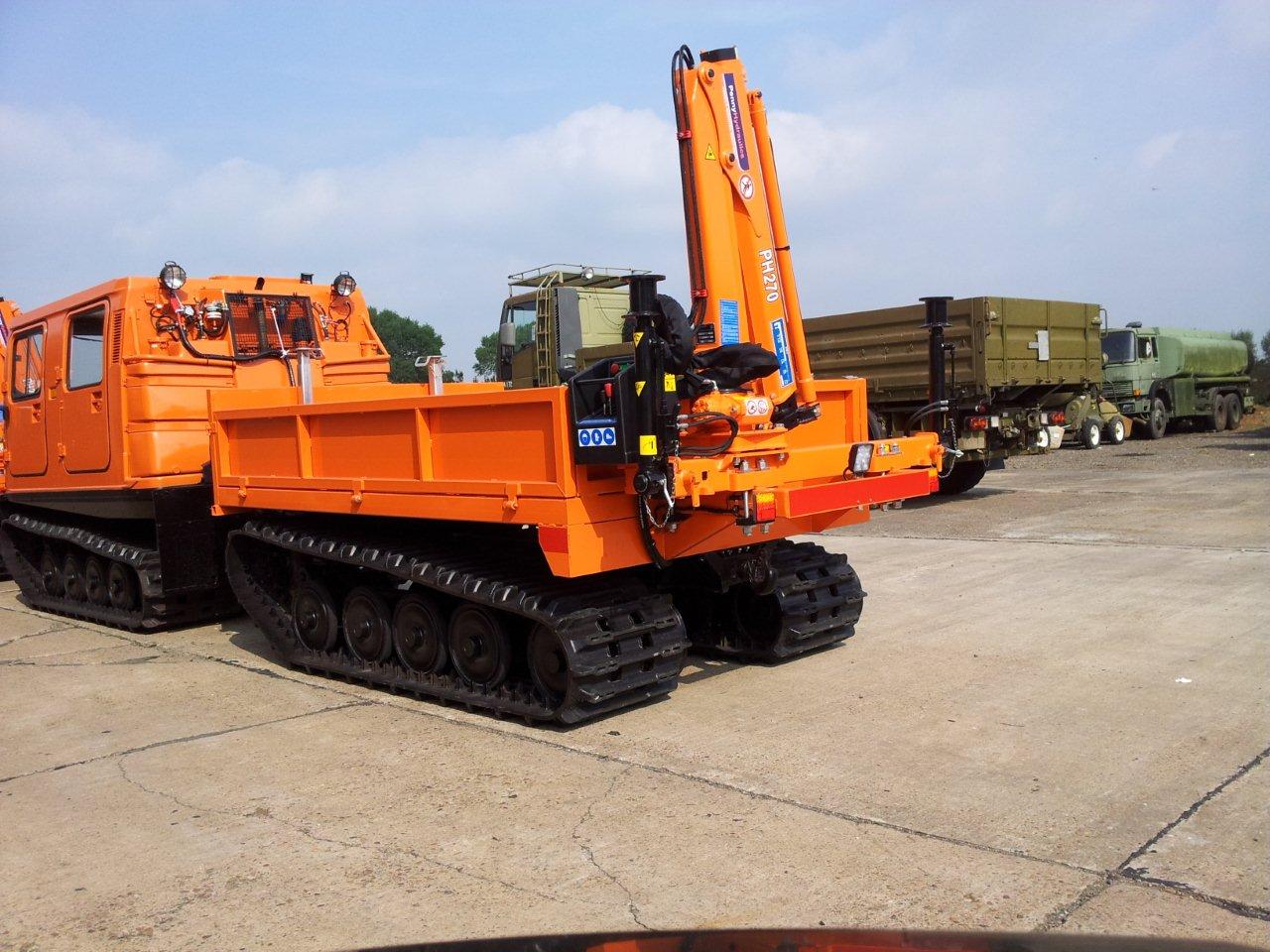

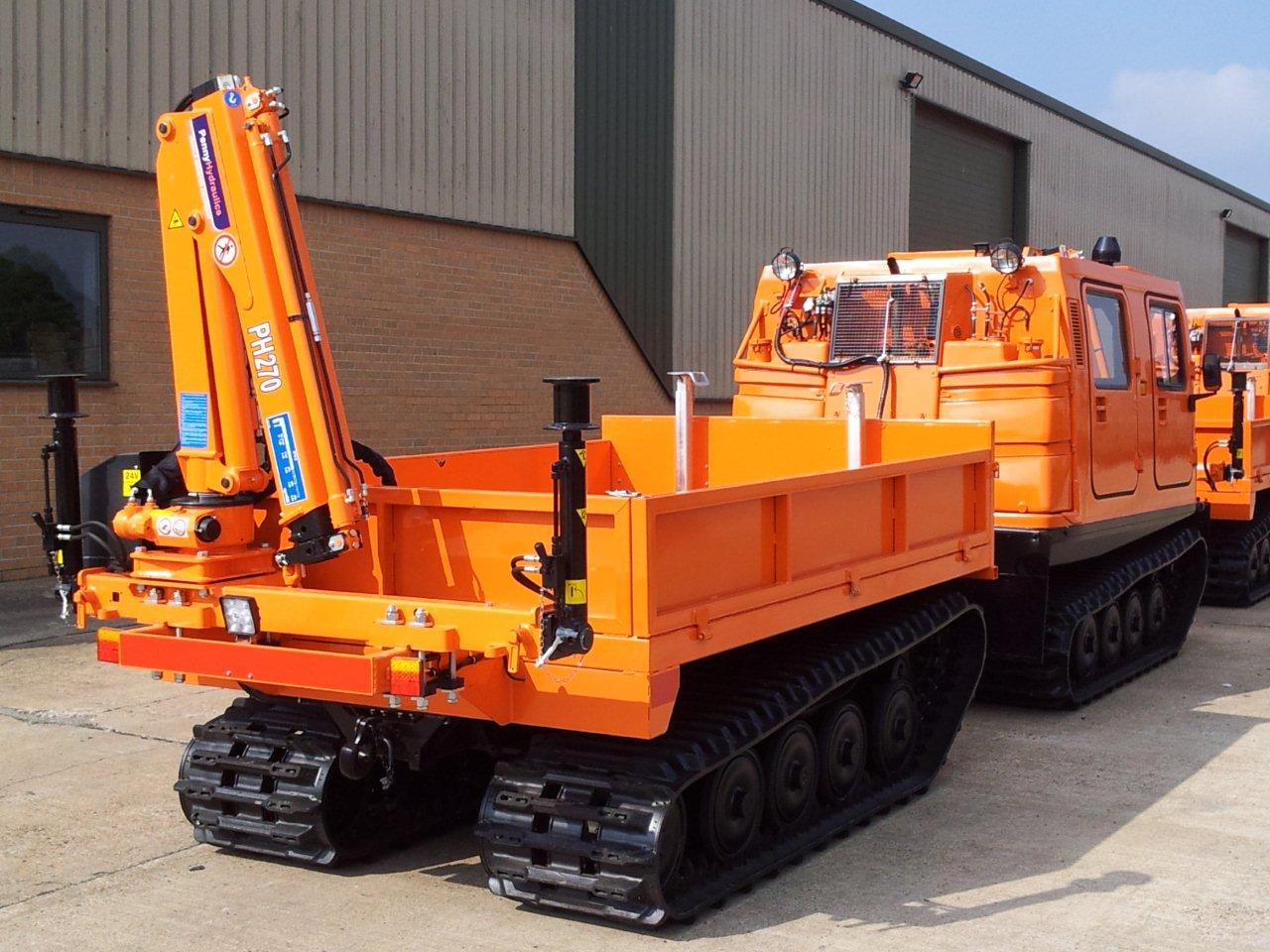

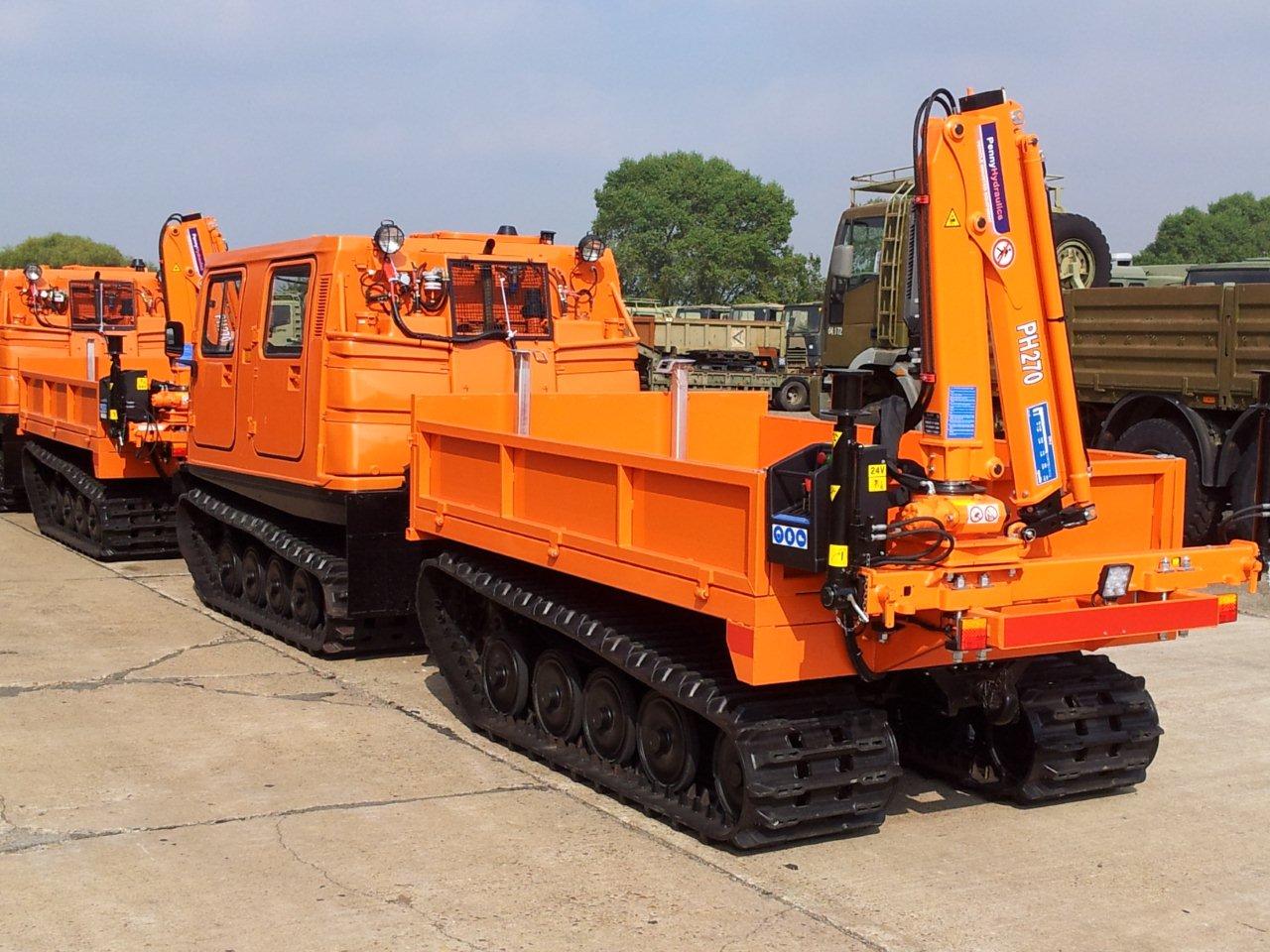

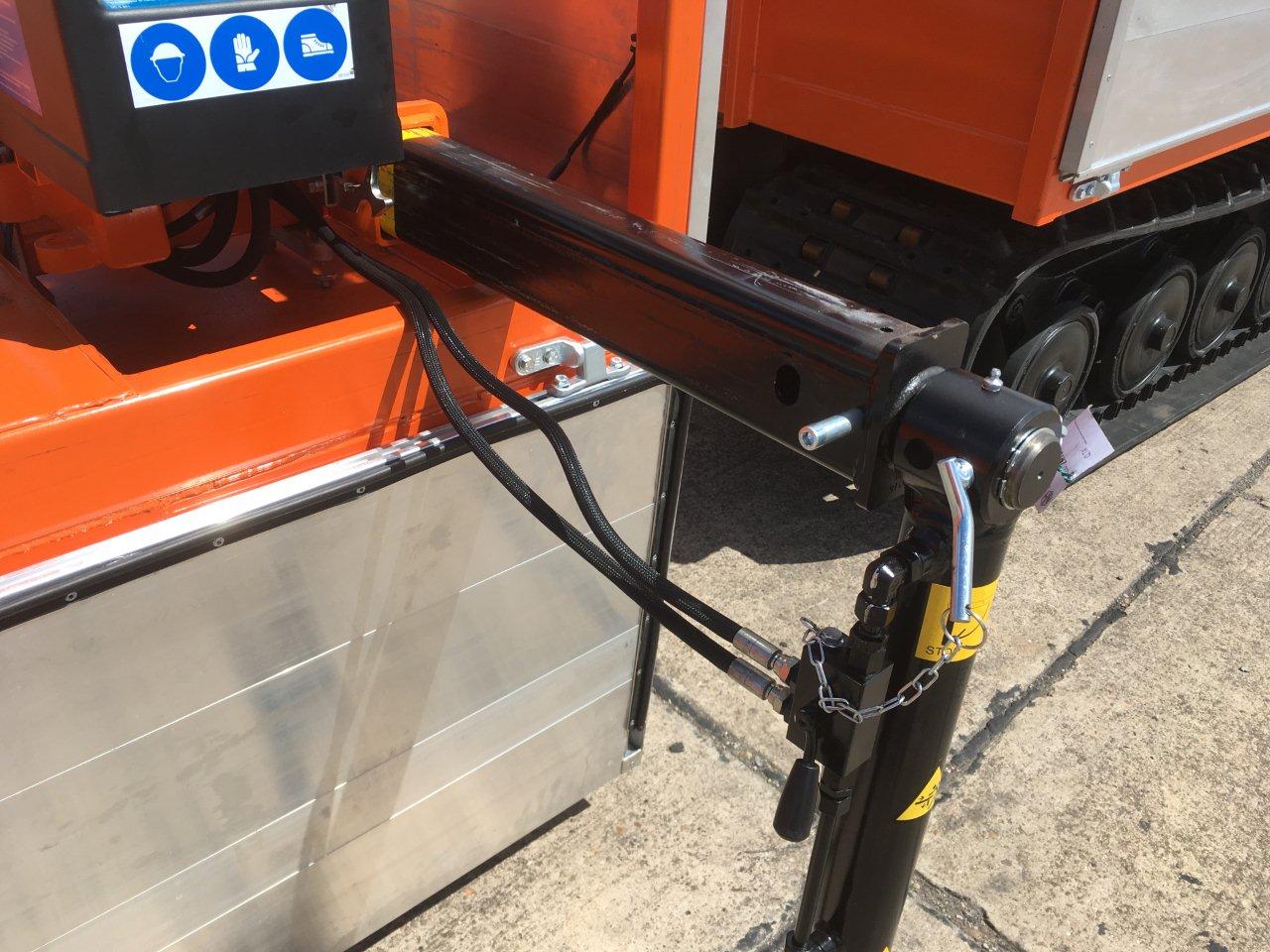

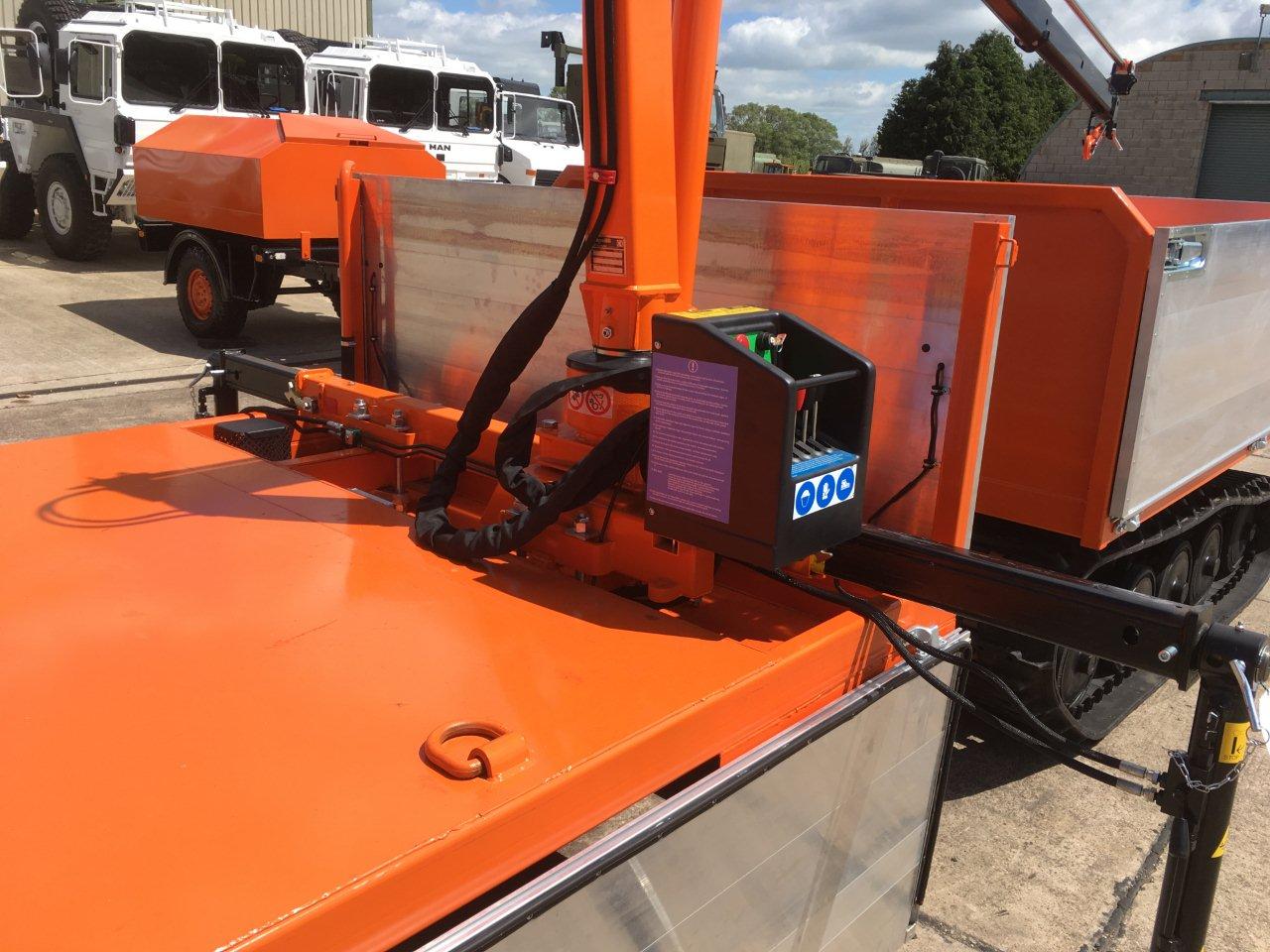

Shown here is a cargo variant fitted with a flat bed cargo body with a new MaxiLift PH270 crane for self loading.
The undercarriage has been fitted with new tracks, sprockets and road wheels as well as fitted with a new ford diesel engine and many other parts supplying these vehicles to the highest standard.
Options include an amphibious version with the crane mounted internally.

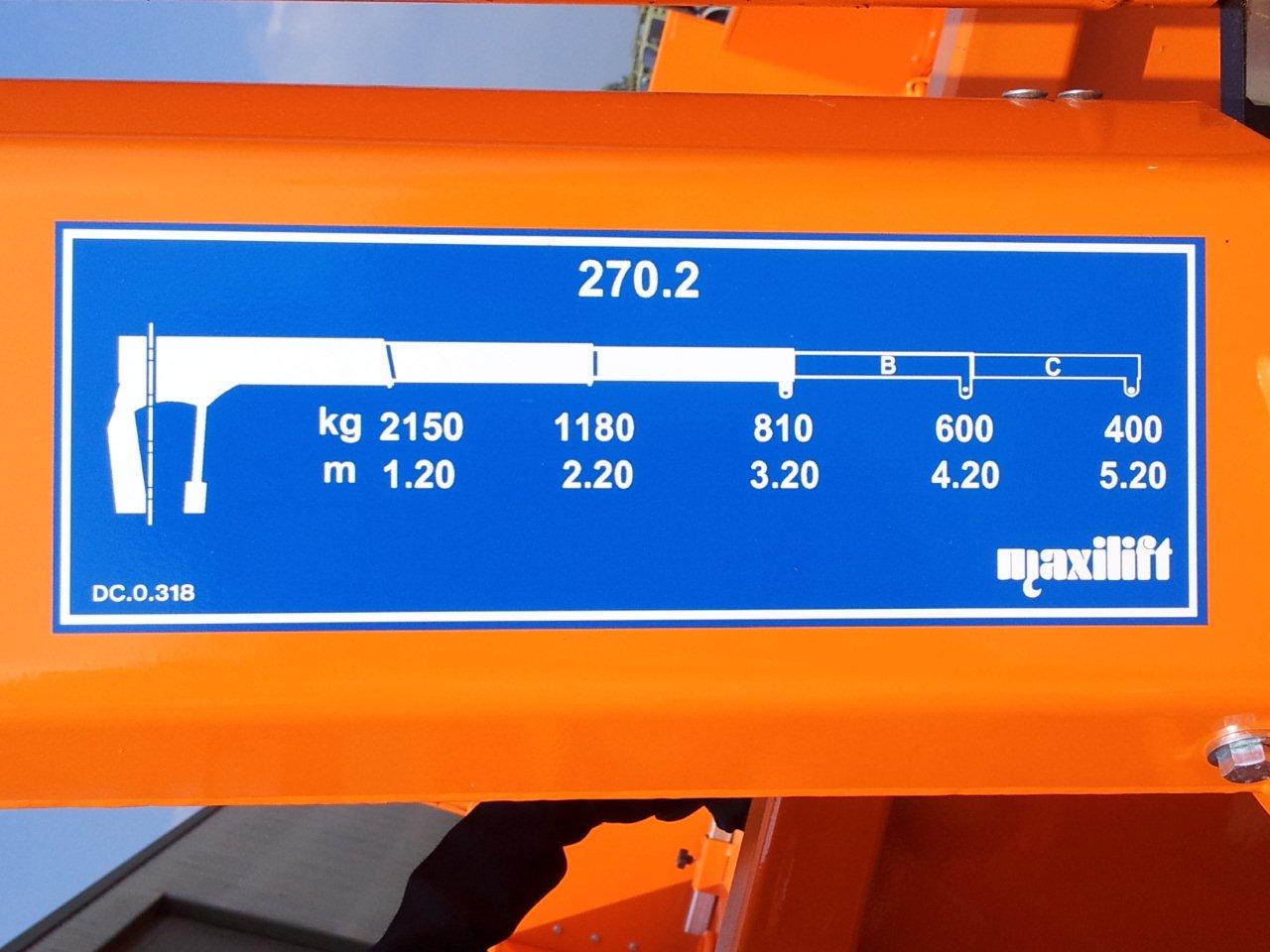

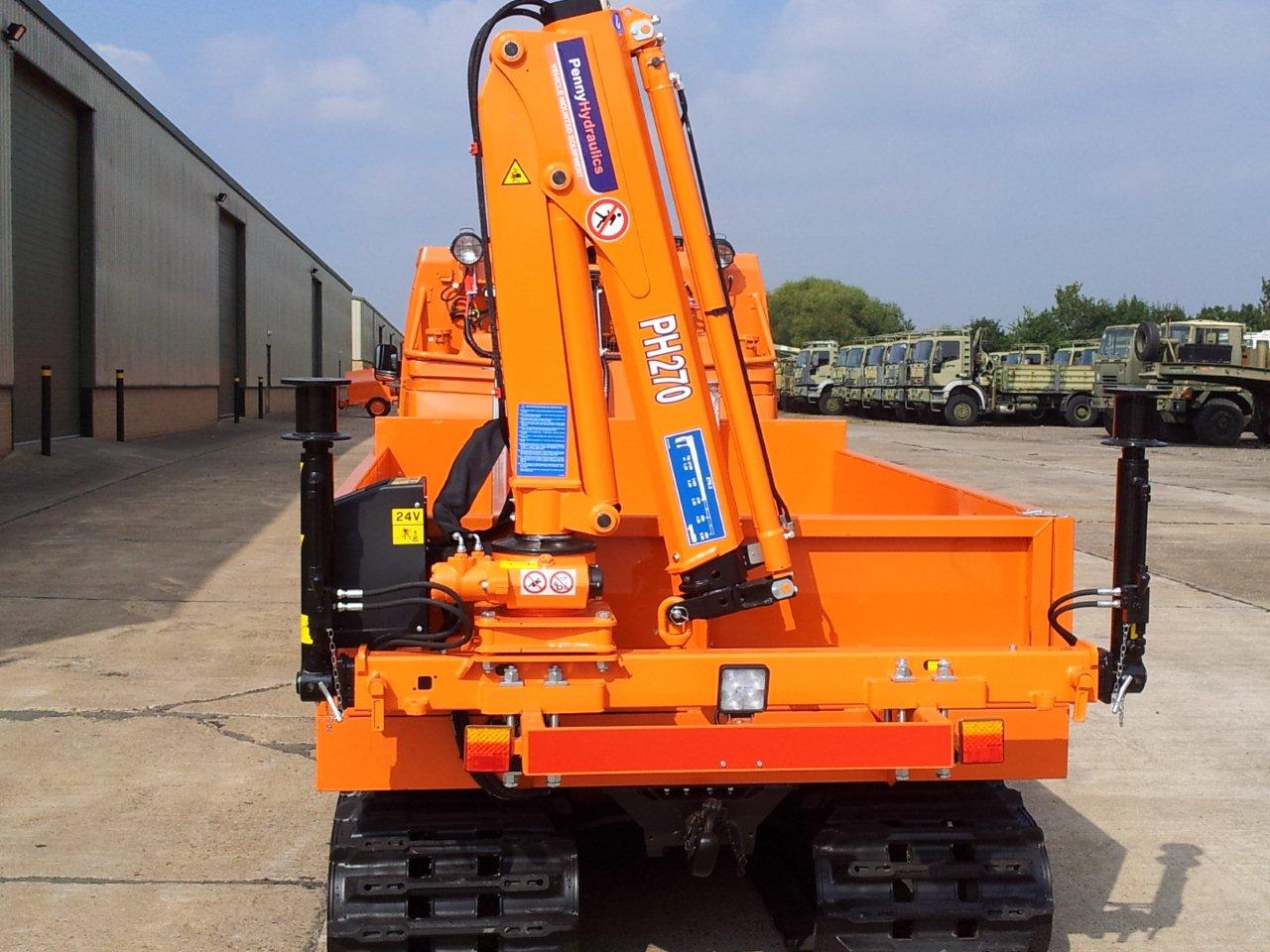

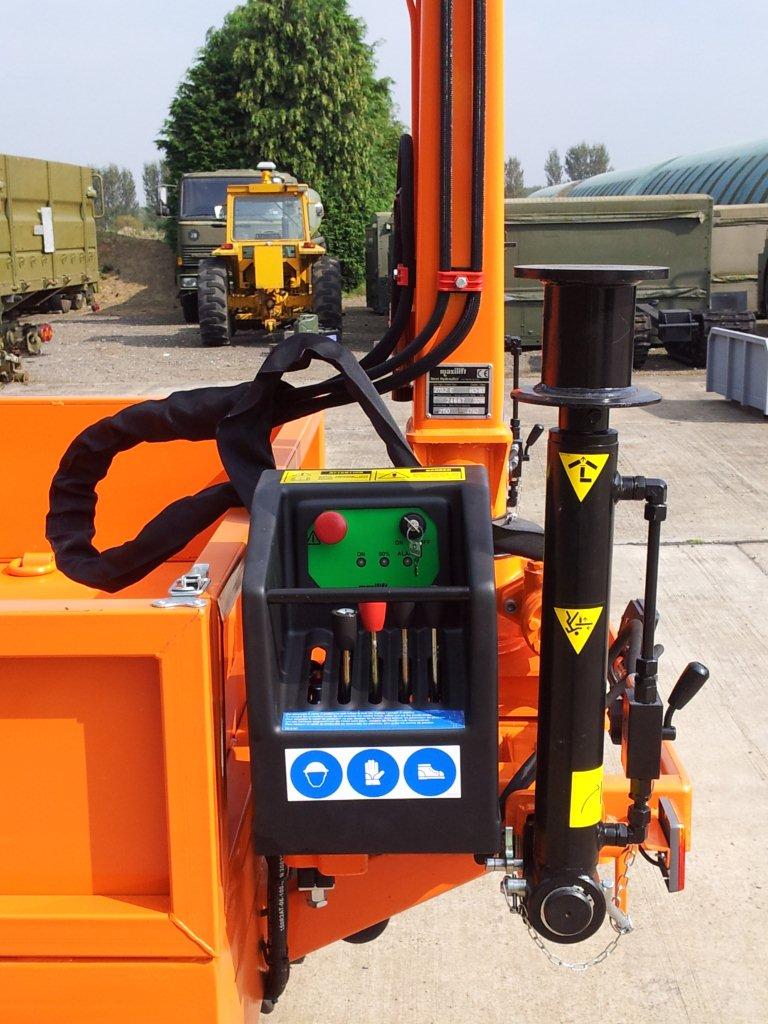

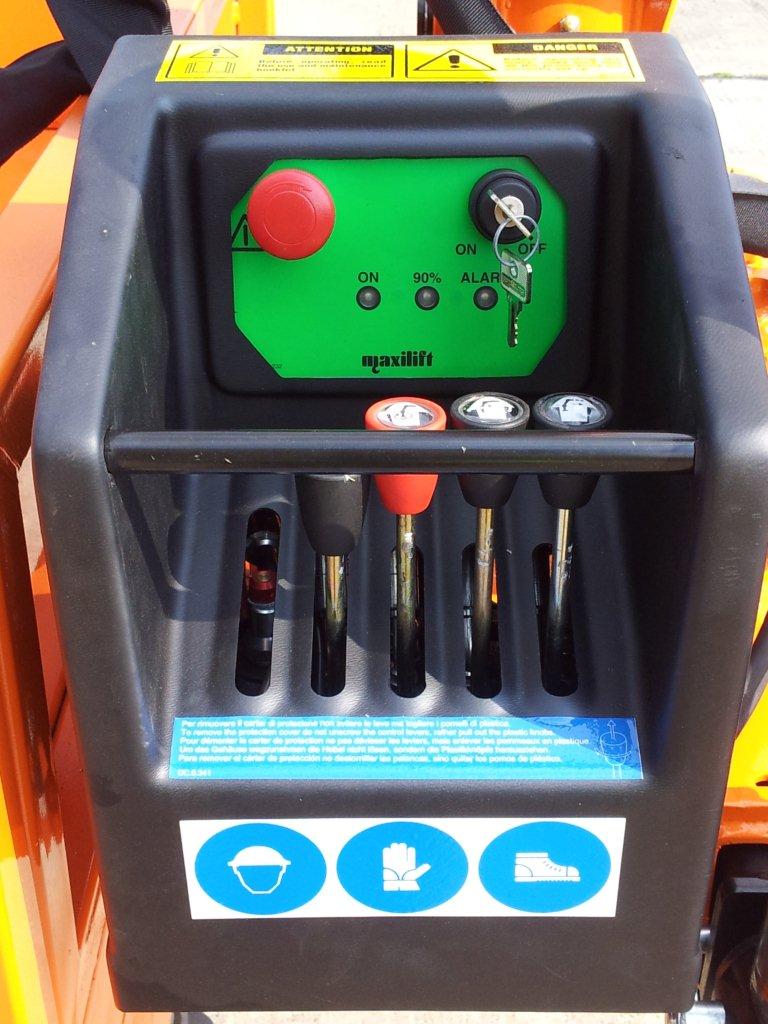

The crane fitted is a MaxiLift PH270 unit which is capable of lifting between 2,150kg at 1.20m and 810kg at 3.20m

  • Category

    Hagglund BV 206 Vehicles

  • Category

    Hagglund BV 206

  • Manufacturer

    Hagglund

  • Engine

    New Ford Turbo Diesel

  • Gearbox

    MB fully automatic with 4 forward gears and 1 reverse WGA-040

  • Brakes

    Hydraulic on transmission

  • Steering

    Power assisted centre point

  • Tyres

    Rubber tracks with steel inserts

  • Max Load

    2,250kg

  • Electrics

    24 volt

  • Length

    6.20m

  • Height

    2.0m

  • Width

    1.80m

  • GVW

    6,000kg

  • Hrs Kms

    1,000 - 1,500kms

  • Date into service

  • Year of manufacture

  • Qty Available

    10

  • Export requirements

    OGEL/SIEL Licence Required
